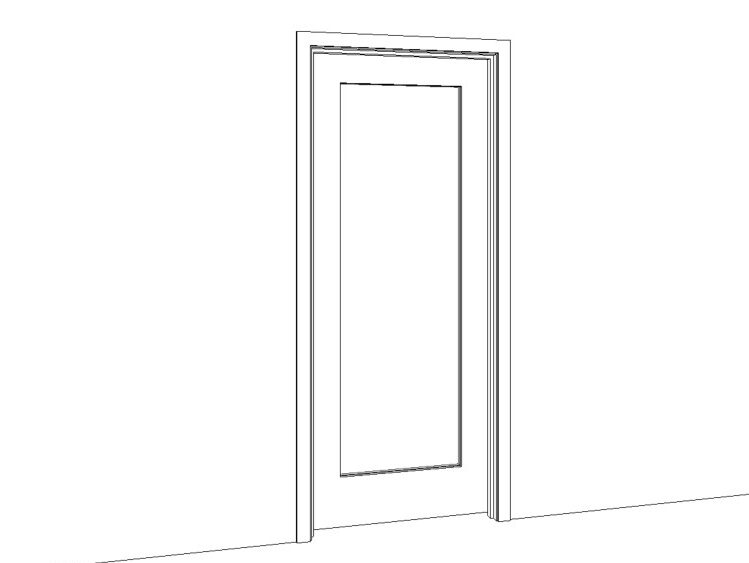

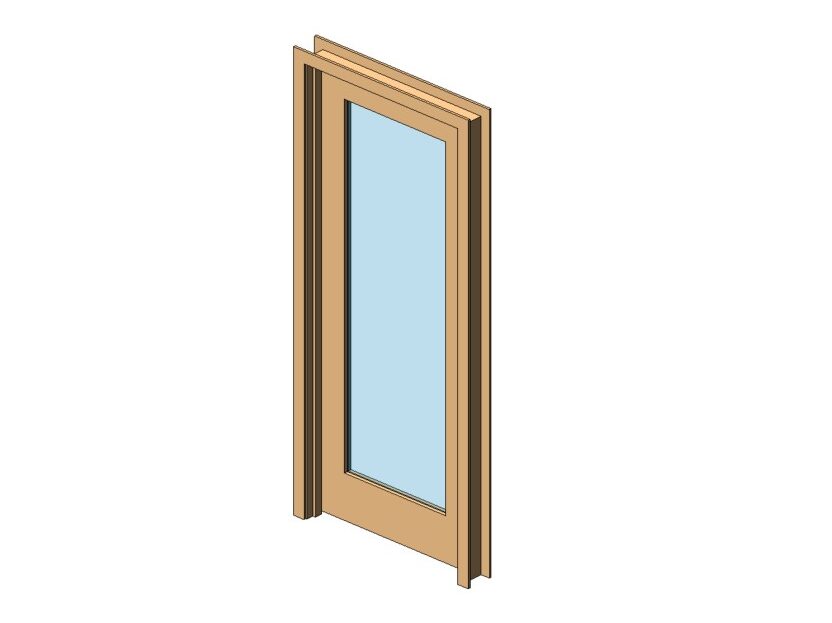

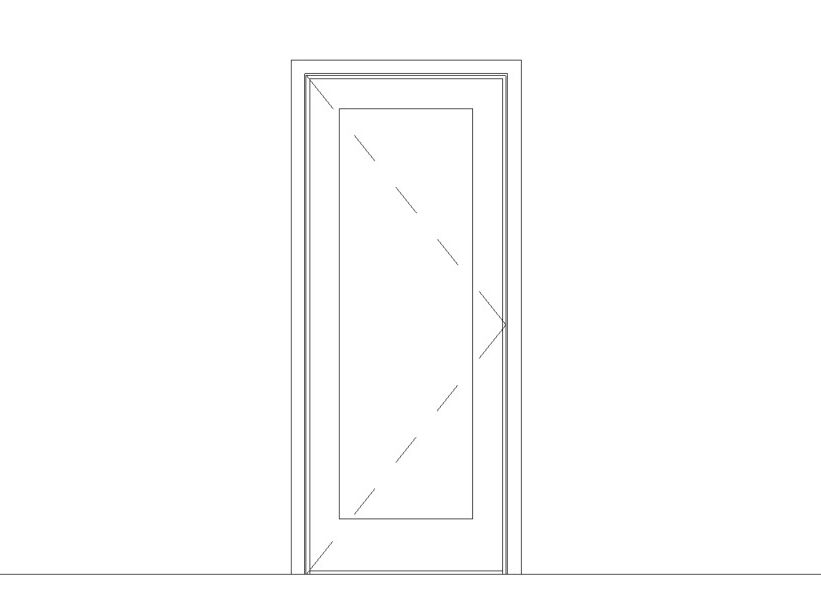

The Single Flush Wood Door with Glass Panel Revit Family represents a clean, modern flush door design featuring an integrated glass vision panel. Suitable for both commercial and residential interior applications, the family is fully parametric.
Door Dimensions
Adjustable width, height, panel thickness, and glass panel height and width, allowing for fully customizable openings.
Frame Dimensions
Parametric frame width and frame depth, adaptable to different wall types.
Glass Panel Geometry
Configurable vision panel size and placement.
Door Swing Control

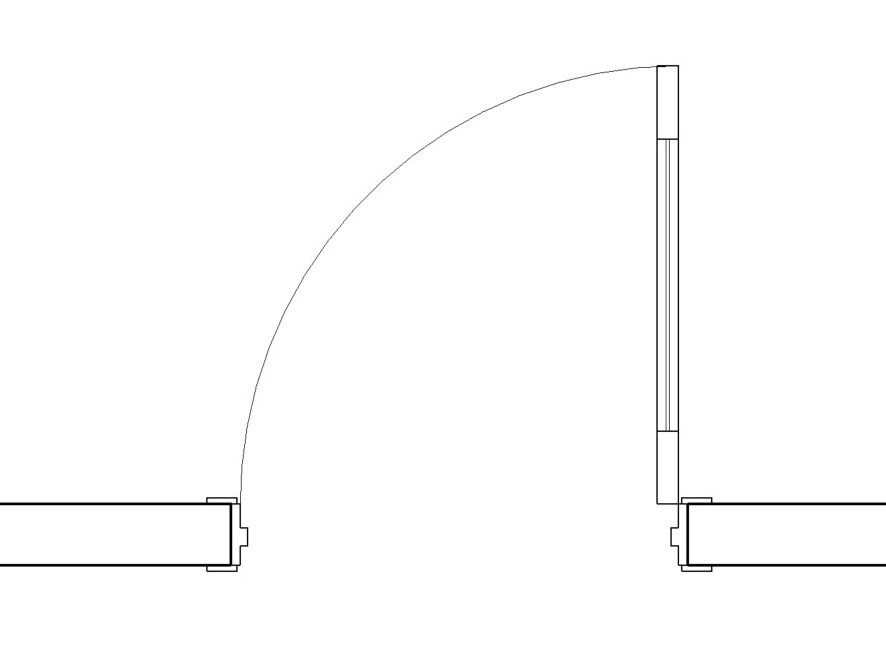

Adjustable door swing angle (e.g., 0°–90°) with automatic swing arc graphics in plan view. Includes left- and right-hand swing options.
Materials & Visibility
Assignable materials for door panel, frame, glass, and trim.
Detail Level Graphics:

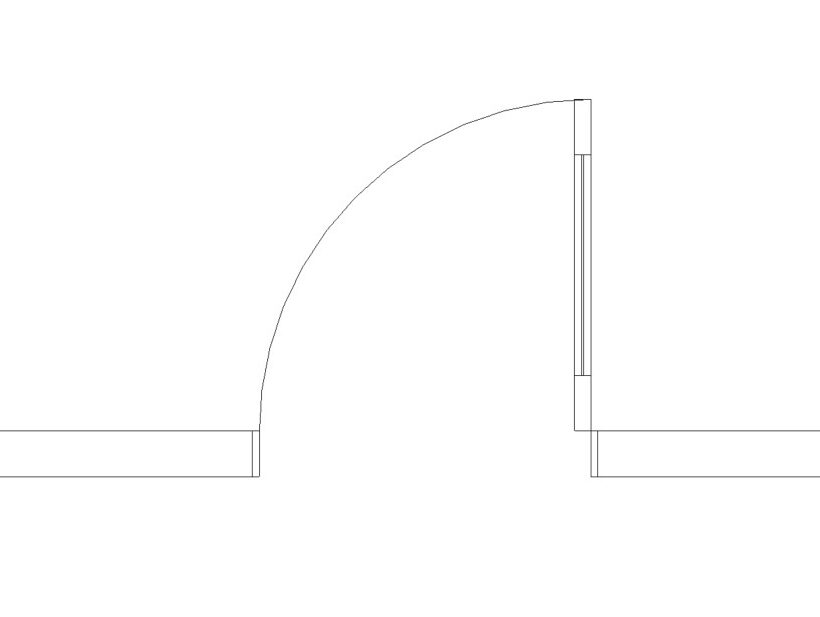

Coarse Level: Displays a simplified solid door form with overall outline.
Medium Level: Adds the vision panel and separates door panel from frame.
Fine Level: Shows the full door frame profile, glass panel reveal, and door stop detailing.
BIM & Documentation Ready:
Fully compatible with Revit door tags and schedules (Type Mark, Fire Rating, Vision Panel Size, Finish, Location, etc.).
Includes shared parameters for comprehensive project scheduling and facility management.
Note: This is a generic door Revit family.
| File | Action |
|---|
| Door_Single_Flush_Wood_w_Glass_Panel_Interior_Standard_102_BIMLibrary.co.rfa | Download |
