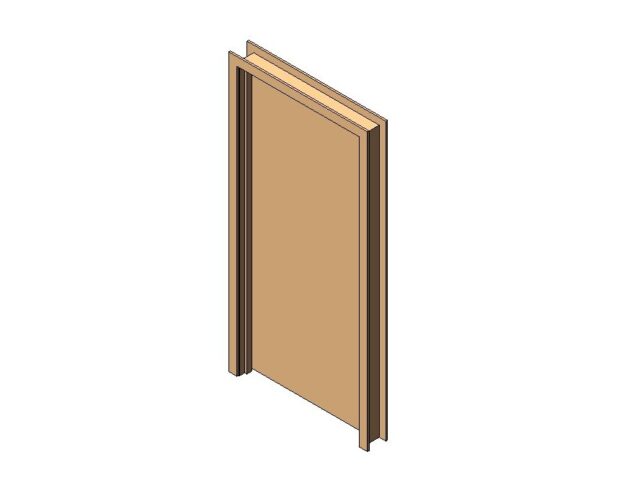

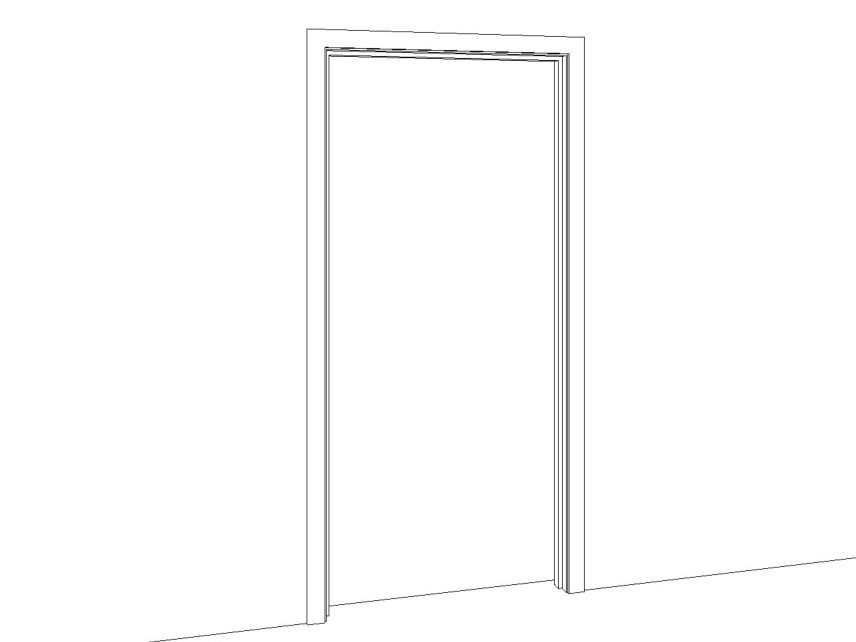

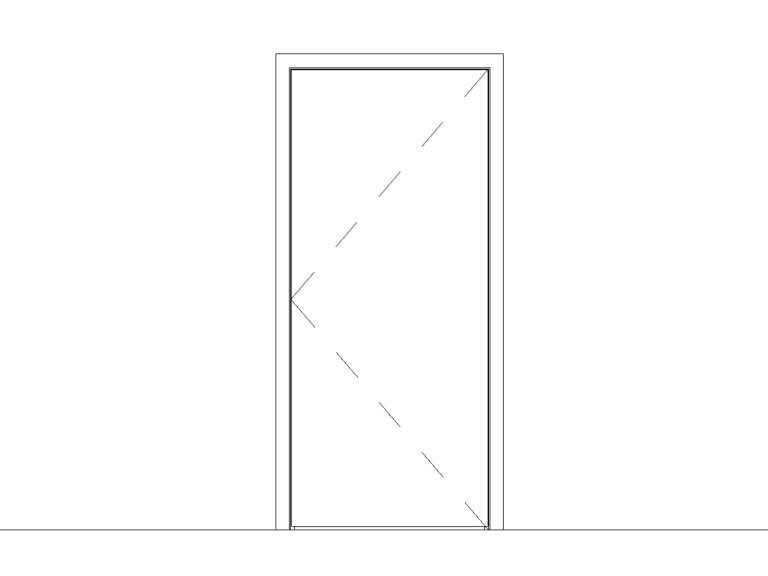

Single Flush Wood Door Revit Family represents a clean, standard, modern flush panel door suitable for commercial or residential interiors. The family is fully parametric, offering flexibility in geometry, materials, and door swing configuration:
Door Dimensions: Adjustable width, height, and panel thickness.
Frame Dimensions: Parametric frame width, frame depth.

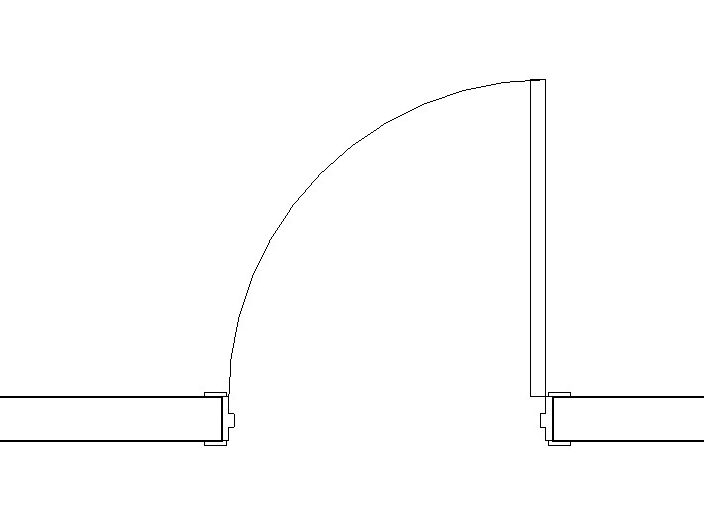

Swing Projection: Automatic swing arc graphics adjust with angle, allowing control of the door leaf's opening angle in plan (e.g., 0°–90°).
Assignable materials for door panel, frame, and trim, with visibility settings.
Coarse Level: Simplified form for performance in large models.
Medium Level: Shows panel, jamb and frame.
Fine Level: Full frame profile, reveal, and door stop.
Compatible with Revit tags and door schedules (Type Mark, Fire Rating, Finish, Head and Jamb detail, Location, etc ).
Shared parameters are available for scheduling.
| File | Action |
|---|
| Door_Single_Flush_Wood_Interior_Standard_101_BIMLibrary.co.rfa | Download |
