Single Casement Window With Transom Aluminum Frame

Single Casement Window with transom Revit family with a clean design, slim profile, and modern aluminum frame.

Adjustable Dimensions: Fully parametric window height and width.
Adjustable Dimensions for single operable window and transom heights.
Frame Depth and Thickness: Customizable aluminum frame dimensions to match the design intent or manufacturer's specs.

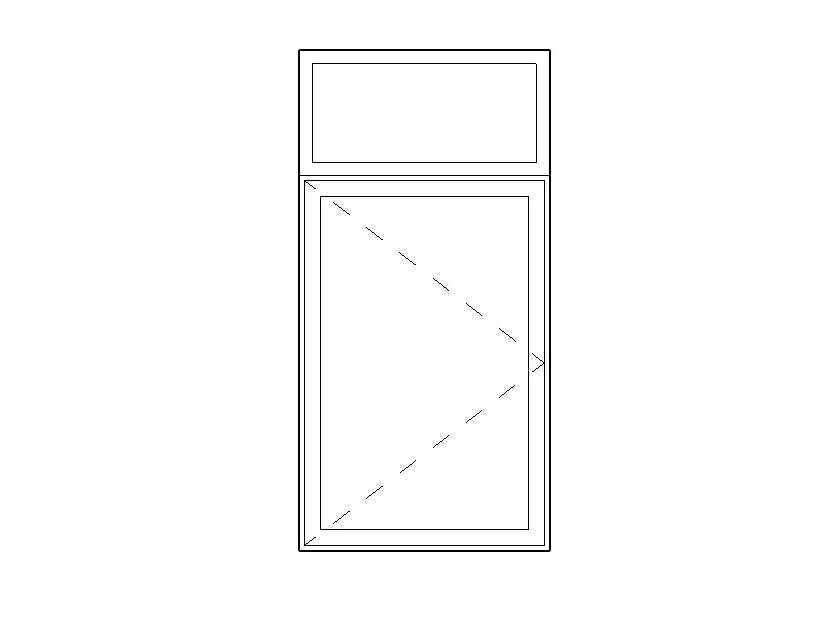

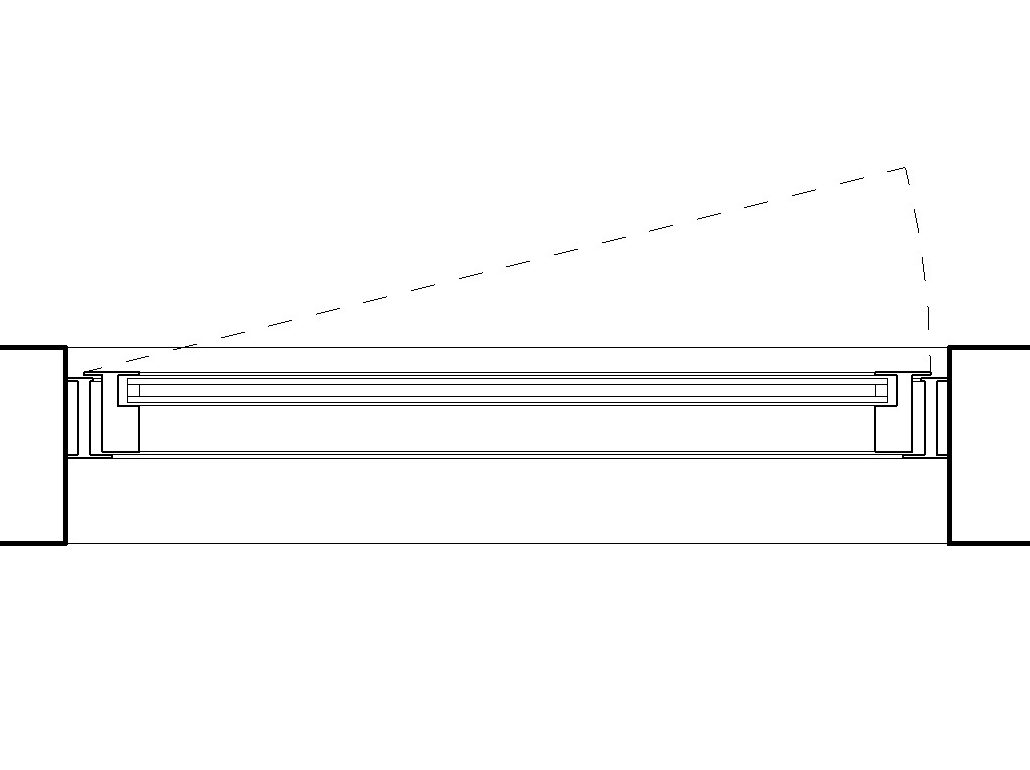

Operation Swing Lines: Includes plan and elevation swing line indicators for casement operation. With visibility options left left-hand swing or right-hand swing.
Wall Integration: Offset distance from the exterior wall face for window placement.
Material Assignment: Assignable materials for both the frame and glazing.
The Single casement window family Revit with an aluminum frame is ideal for modern residential, commercial, and institutional projects, including homes, offices, retail spaces, and mixed-use developments.
Outswing: The window is designed for outswing operation but can also be used for inswing configurations.

Note: This is a generic double-window family with a transom, ideal for use during the schematic design and design development phases. For construction documentation and project-specific requirements, consider using manufacturer's family products to ensure alignment with project specifications and performance criteria
