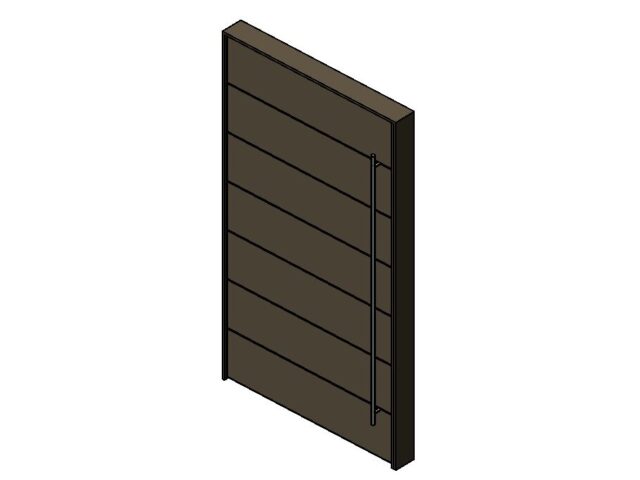

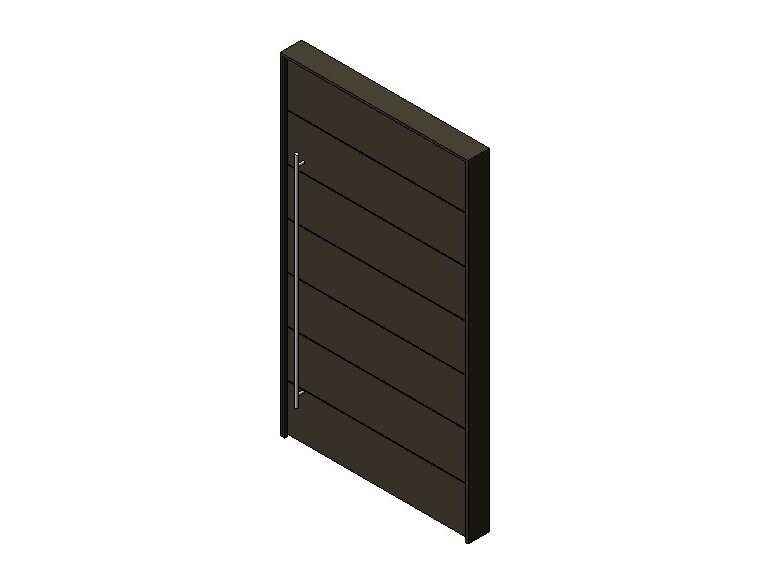

A modern pivot entry door Revit family with evenly spaced parametric horizontal grooves, designed for residential or commercial entrances. The family is fully parametric:
Key Features
Adjustable door height, width, and panel thickness.
Adjustable door stop size.
Parametric pivot location coordinated with door swing projection.

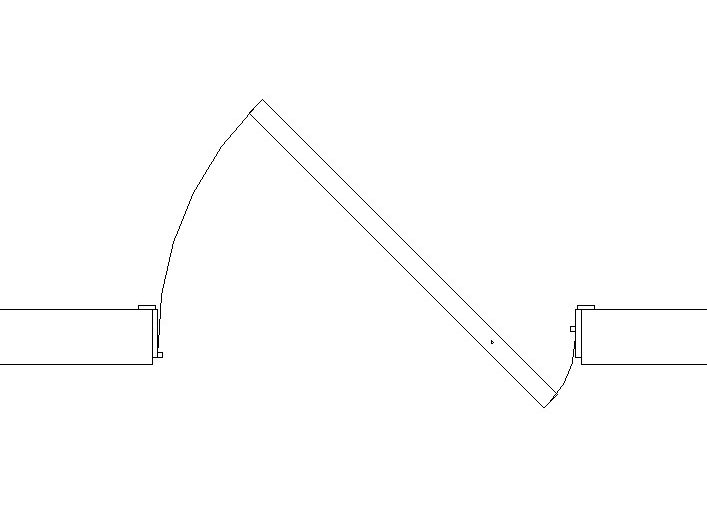

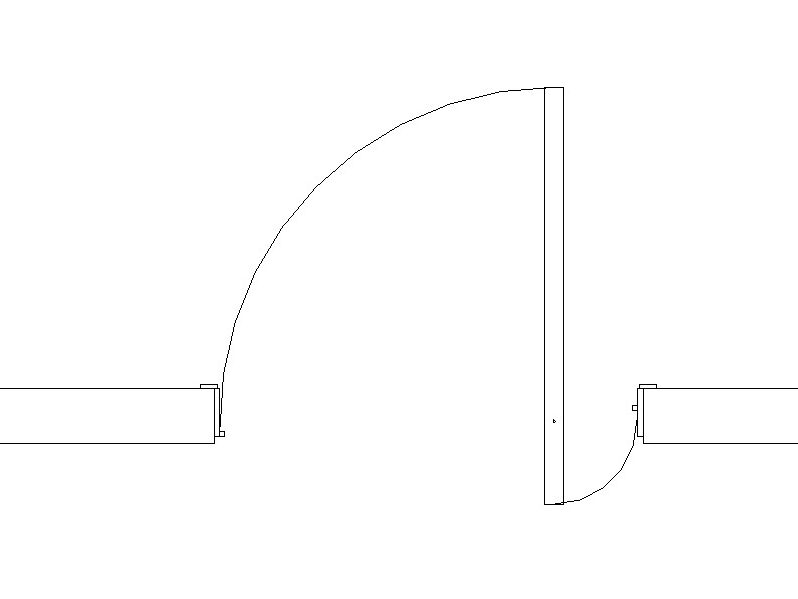

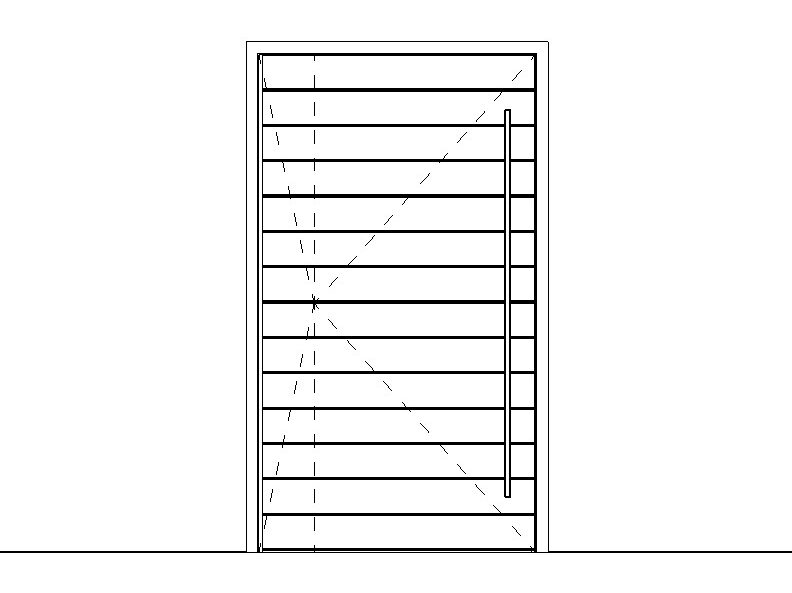

Parametric door swing projection arc for different swing angles; matching the elevation swing graphic with on/off visibility controls.
Parametric equally spaced horizontal groove pattern with parameters for groove count, spacing, and depth of the groove.
Door Pull Hardware: Adjustable metal door pull—length, offset from edge/height, and visibility.
Adjustable Jamb/Frame: Parametric door jamb width & depth, head/sill offsets, and door undercut.
Materials by Parameter: Separate Material parameters for door panel, frame, and door pull handle.
Instance types ready for the door schedule.
File | Action |
---|
Door_Pivot_Entry_Horizontal_Panels_130.rfa | Download |
