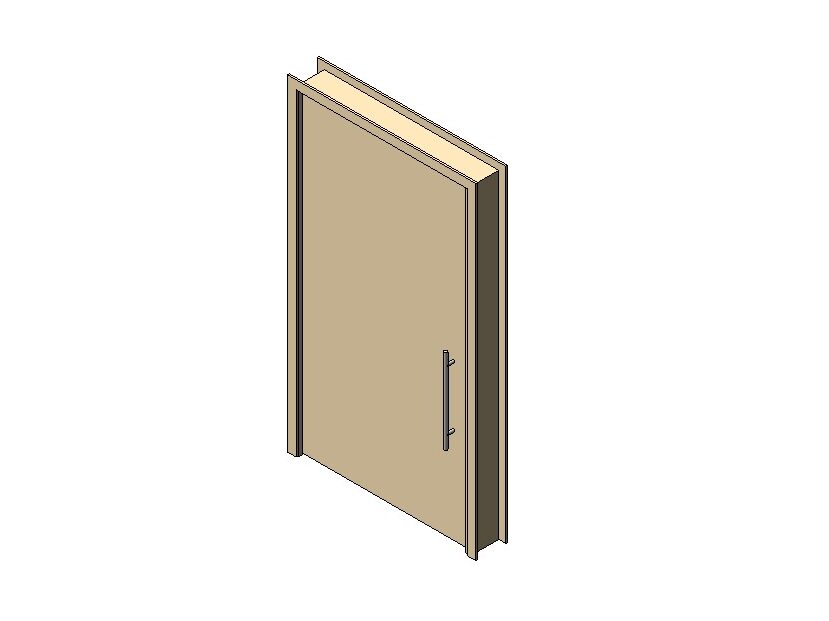

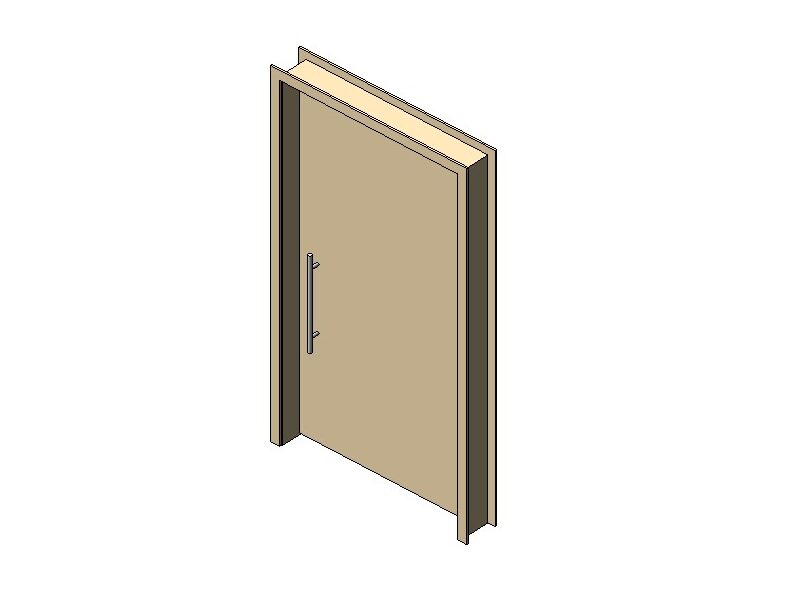

Revit family pivot door with a modern design, for both residential and commercial applications, offering a simple architectural appearance and flexible parametric controls.
Key Features:
Fully Parametric Geometry: Adjustable overall width, height, panel thickness, and offset dimensions.
Pivot Mechanism: Configurable pivot point location, allowing for design door options and configurations.
Frame and Jamb: Parametric frame width and depth to suit diverse wall assemblies.

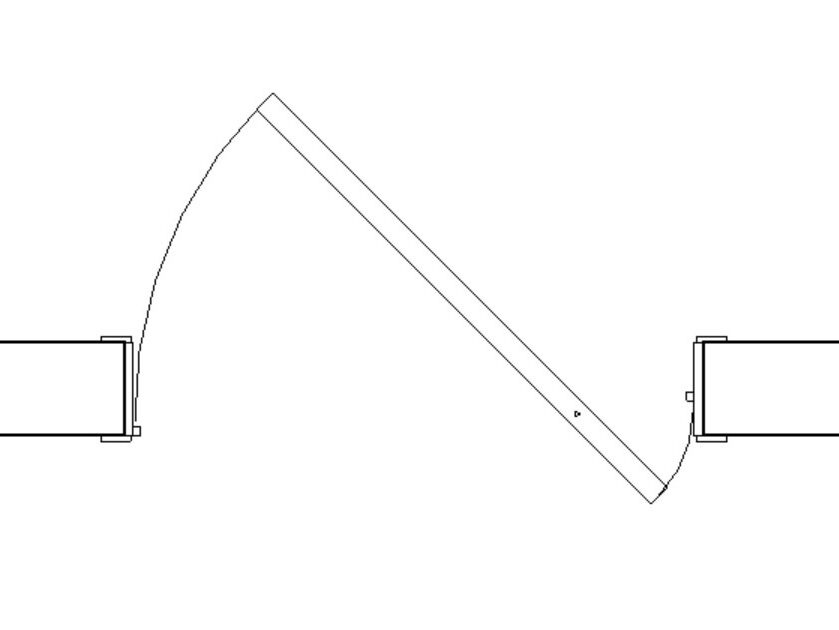

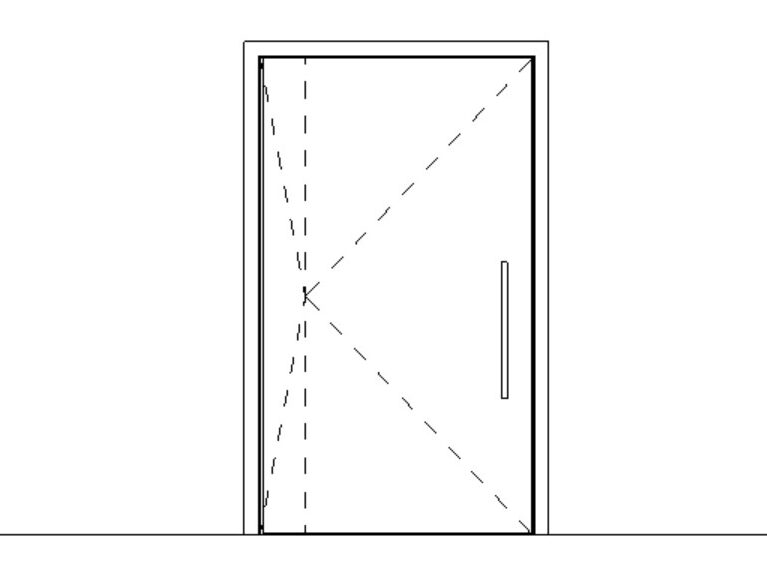

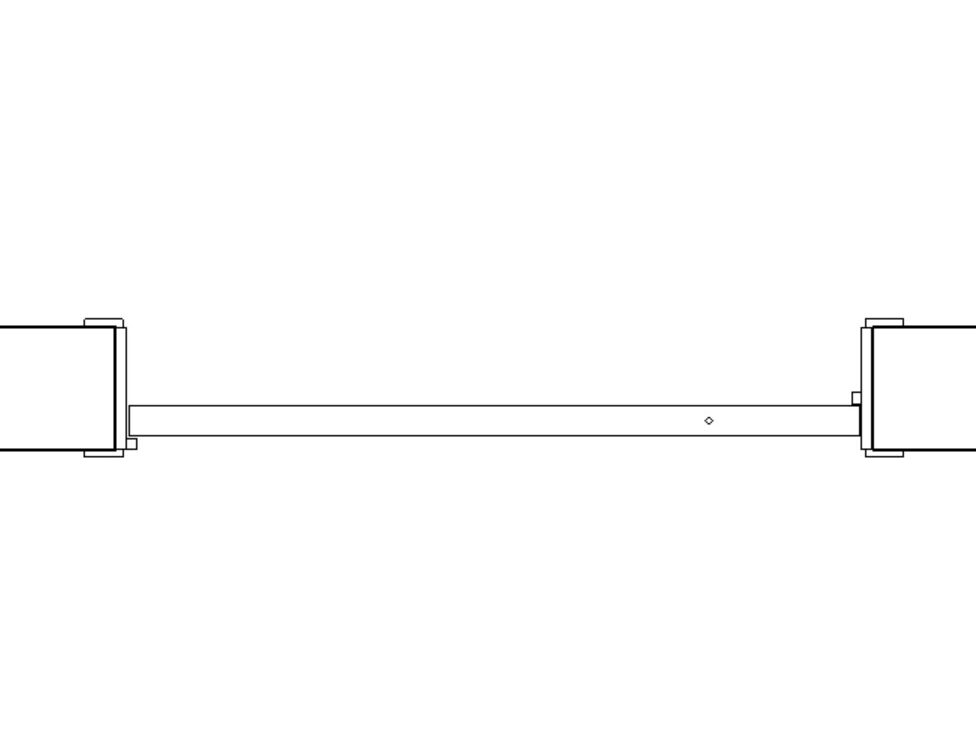

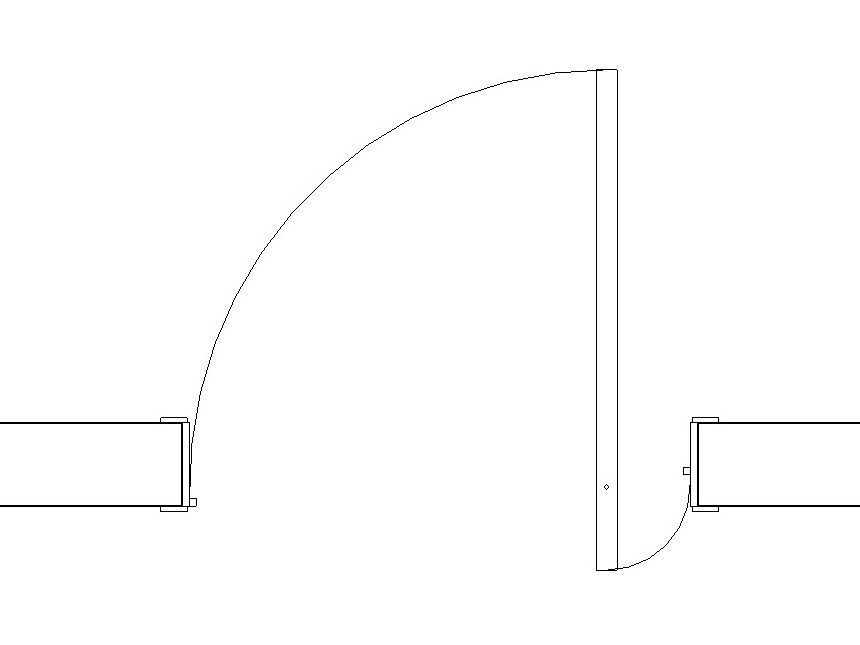

Swing Projection: Plan and elevation swing arcs with projection lines, featuring parametric swing angle control and visibility parameters.
Door Pull Handle: Parametric pull handle family included, with adjustable length, diameter, and visibility control.
Material Customization: Supports material parameters for door panel, frame, and pull handle.
Detailing: Clean geometry suitable for design development, construction documentation, and visualization.
File | Action |
---|
Door_Pivot_Single_Wood_Interior_Standard_120_BIMLibrary.co.rfa | Download |
