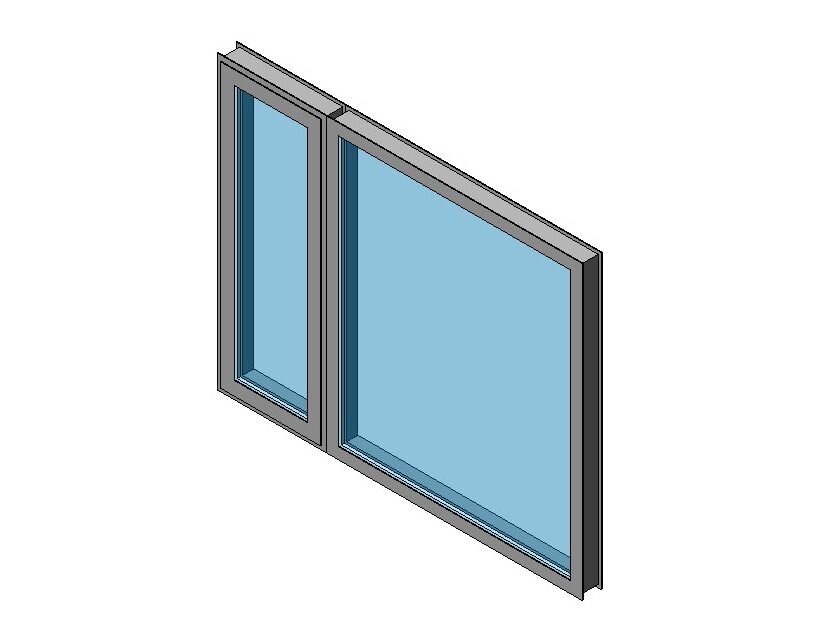

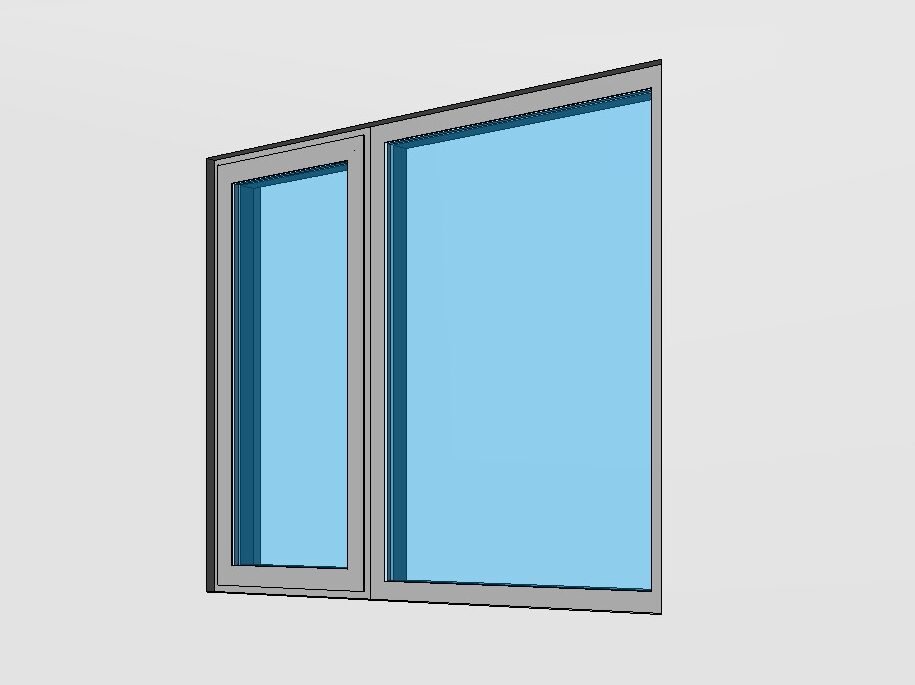

Fixed and Operable Casement Window Aluminum Frame

Double-panel casement window, combining a swing panel and a fixed panel. It is fully parametric, with advanced customization options for frame, dimensions, and materials, including:

Casement swing direction: Outswing - opens to exterior.

Fully Parametric Dimensions: Adjustable width, height, and operable panel sizes.

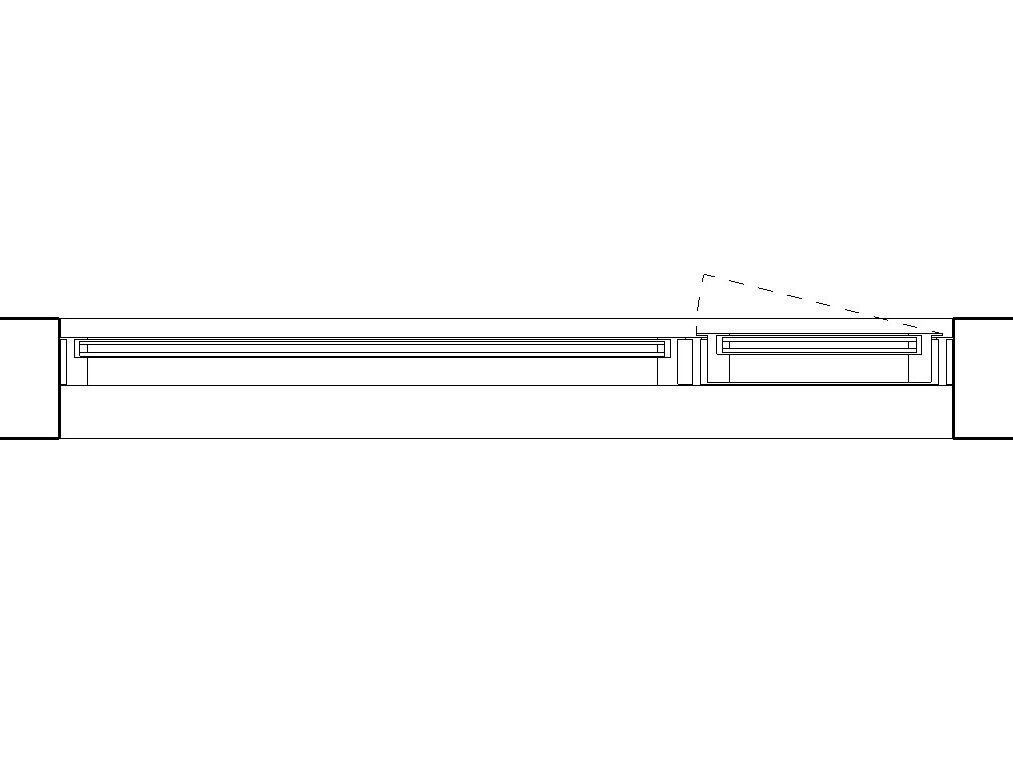

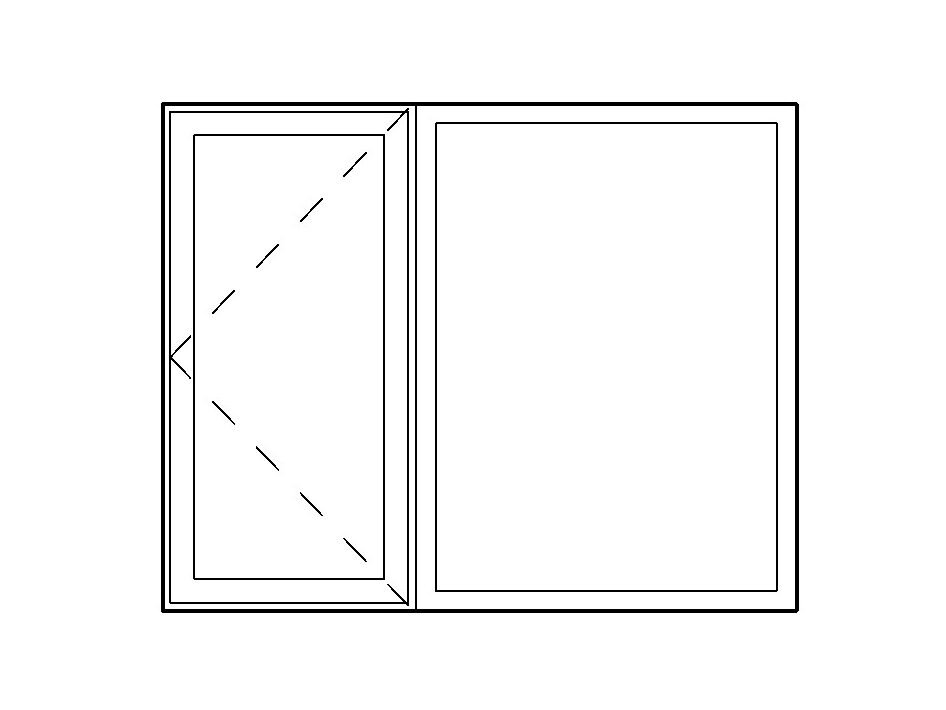

Projection Swing Lines: Projection swing line visible in both plan and elevation views for left or right-hand swings.

Frame Thickness and Depth Parameters: Easily adjustable to match architectural or manufacturer requirements.

Material Assignments: Parametric material for window frame and glass

Wall Integration Options: Control offsets from the wall face.

This family is ideal for modern designs that require sleek aluminum frames.

Note: This is a generic double window family fixed plus operable panels, ideal for use during the schematic design and design development phases. For construction documentation and project-specific requirements, consider using manufacturer-specific family products to ensure alignment with project specifications and performance criteria.
