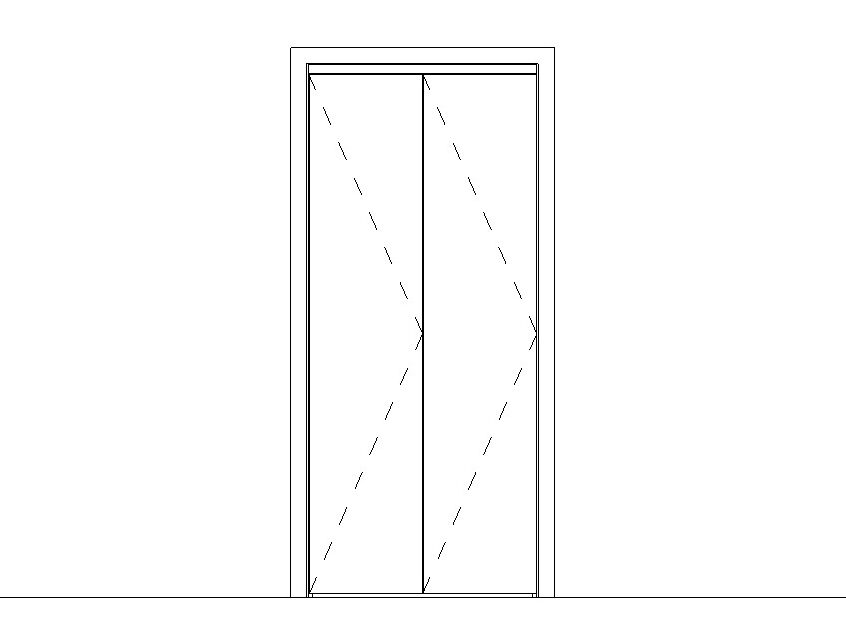

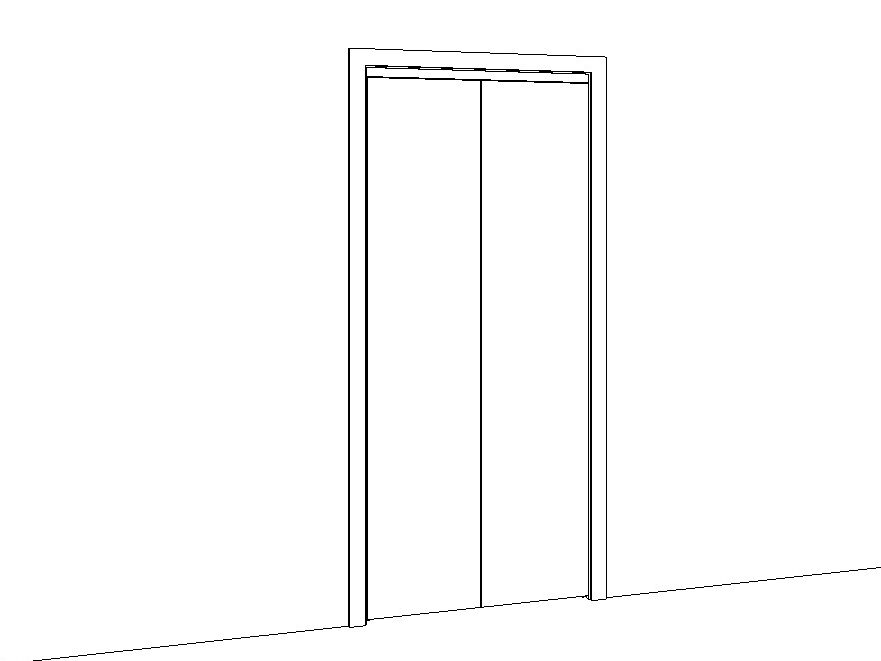

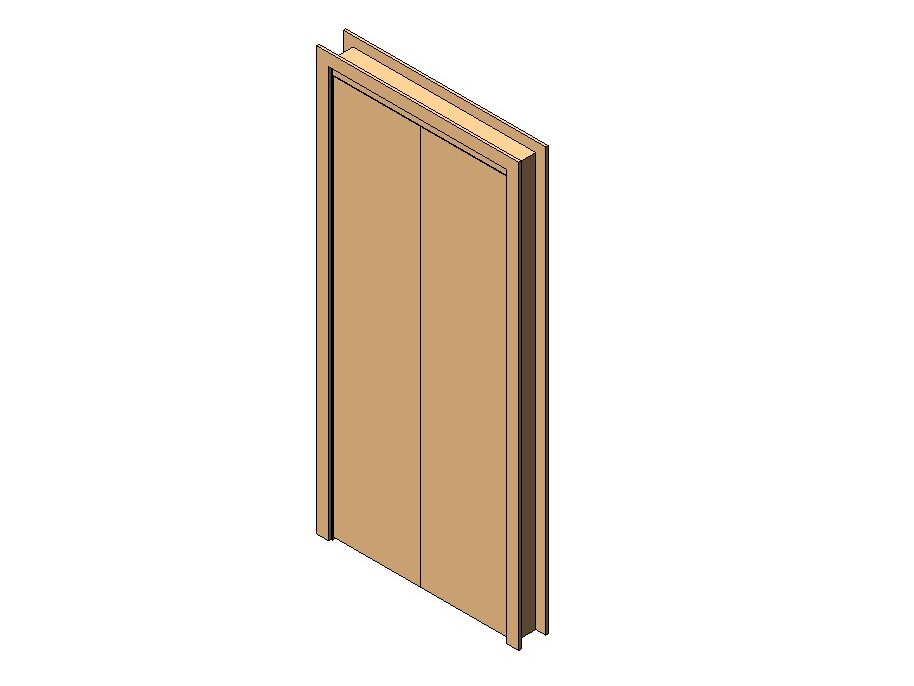

This Revit family represents a clean, standard modern two-panel bifold flush wood door, ideal for residential and commercial interior spaces. The bifold door family is fully parametric, offering extensive customization options to suit a range of architectural detail planning.
Fully Parametric Geometry:
Adjustable overall door width, height, and panel thickness.
Adjustable track height fascia.
Panel Configuration:
Features two flush wood panels hinged at the center to fold open along a single axis. Each panel folds in a bifold operation.

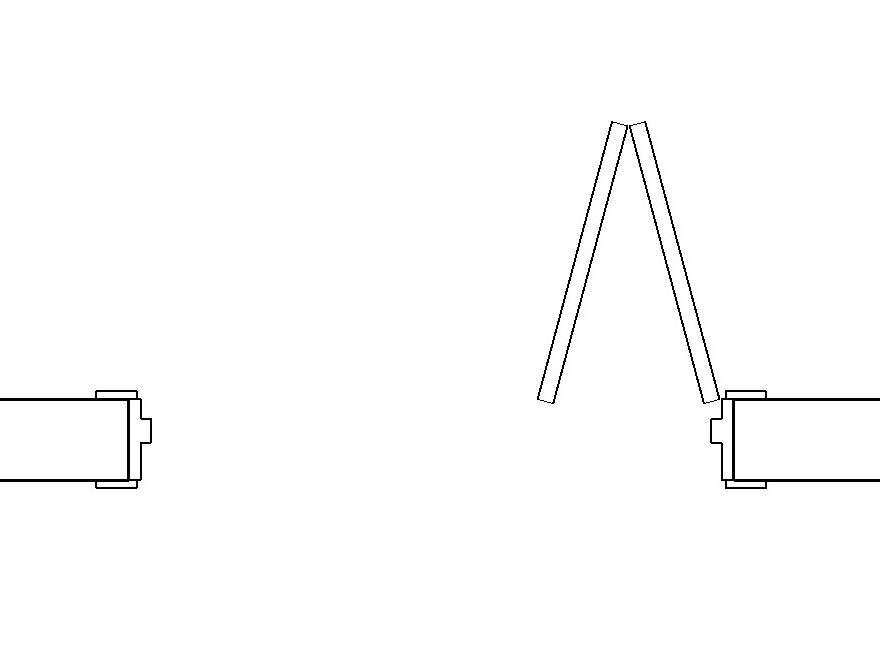

Swing Graphics (Plan View):
Plan swing representation is adjustable via a parameter:
Show doors fully closed, fully open, or folded.
Frame Dimensions:
Parametric frame width and depth to accommodate various wall types and detailing.
Material Parameters:
Separate material assignments for door panels and frame.
Detail Levels
Coarse: Simplified overall form for model performance
Medium: Displays individual leaves, frame, and jambs
Fine: Shows full frame profiles, panel detailing, and stops.
Documentation Compatibility
Support for Revit tags and door schedules
Includes fields for Type Mark, Fire Rating, Finishes, Leaf Dimensions, Vision Panel Size, Frame Details, and Installation Location
Shared Parameters
Included for seamless integration with project schedules and multi-discipline coordination.
| File | Action |
|---|
| Door_BiFold_2_Panels_Wood_Flush_Interior_Standard_105_BIMLibrary.co.rfa | Download |
