3 Panel Window Central Casement Aluminum Frame

Triple-panel window Revit family, with a swing center panel and two fixed side panels. It features a modern aluminum frame with a slim profile.

Panel Configuration:

Casement outswing center panel.

Fixed side panels.

The central swing panel can be adjusted for width.

Parametric Dimensions:

Fully adjustable window height and overall width.

Frame Profile: Customizable depth and thickness of the aluminum frame.

Swing Direction Indicators:

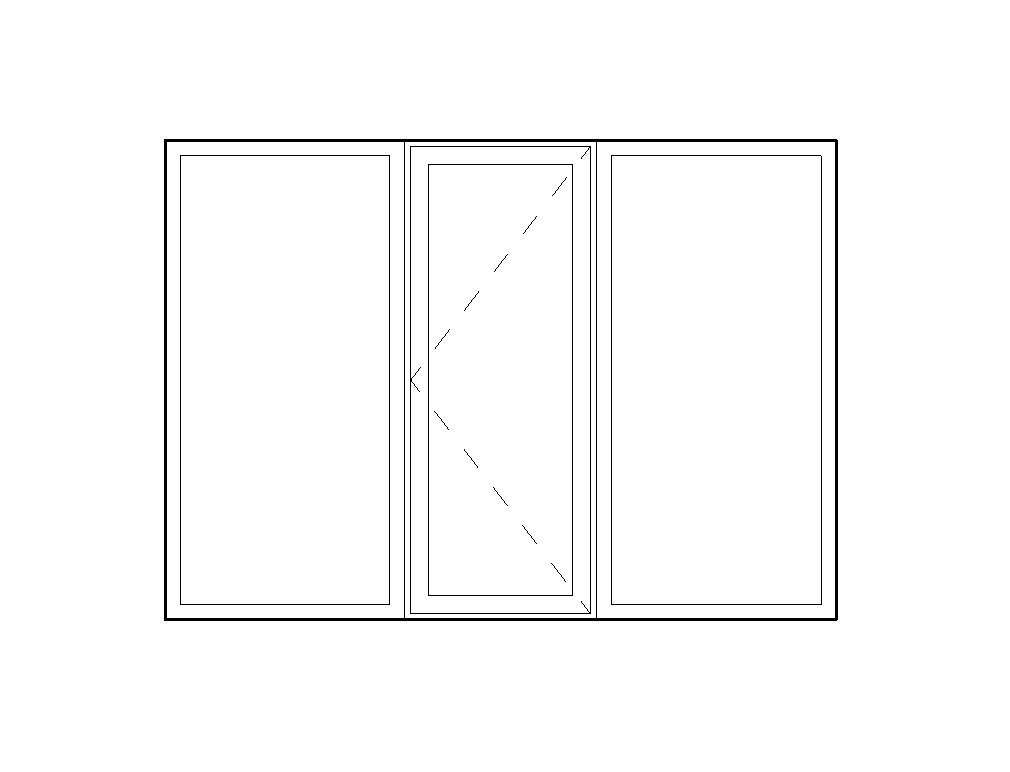

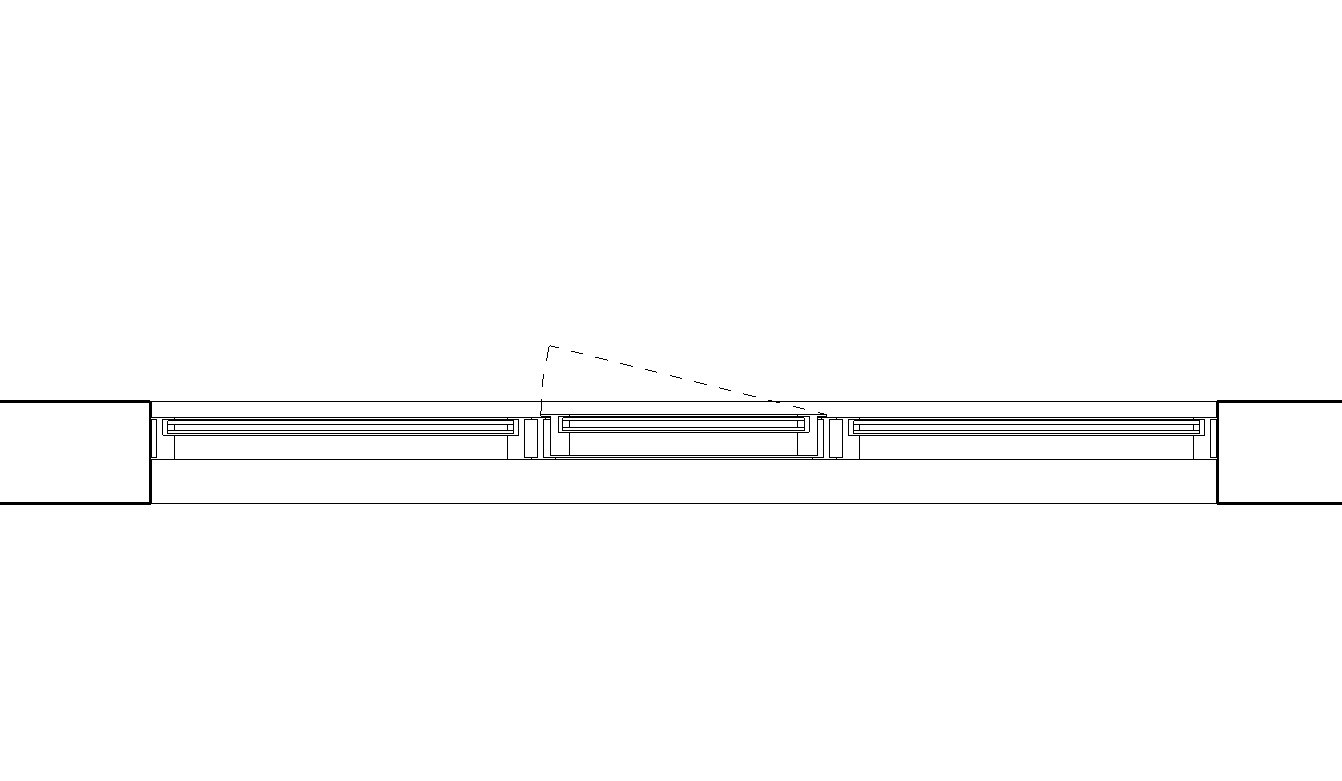

Plan and elevation views of the swing line for left and right operable panels.

Material Assignment:

Assignable materials for frame and glazing to integrate seamlessly with the design palette.

Wall Integration:

Configurable offset from the wall face.

Note: This is a generic triple-panel window family, two fixed and one operable panels, ideal for use during the schematic design and design development phases. For construction documentation and project-specific requirements, consider using manufacturer-specific family products to ensure alignment with project specifications and performance criteria.
