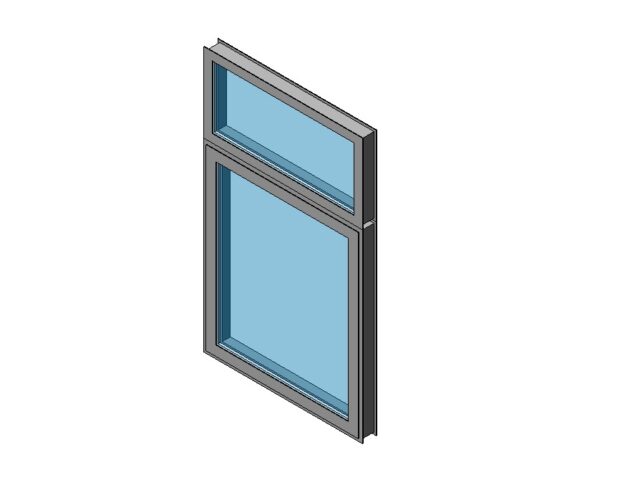

Single Casement Window With Transom Aluminum Frame
Casement single window with transom Revit family, modern aluminum frame, fully parametric dimensions for height, width, frame depth, and thickness. Includes swing line visibility.
Casement
Casement windows open and close like a door, operated by a crank or similar mechanism that gradually pivots the sash, with a latch on the opposite side to secure it when closed

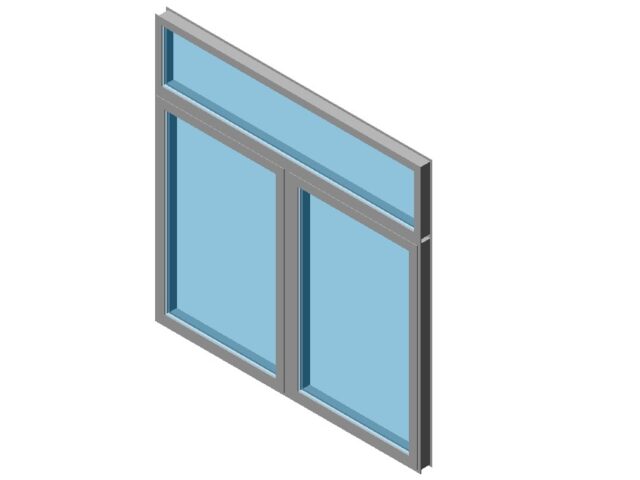

Double Casement Window With Transom Aluminum Frame
Casement double window with transom Revit family, modern aluminum frame, fully parametric dimensions for height, width, frame depth, and thickness. Includes swing line visibility.

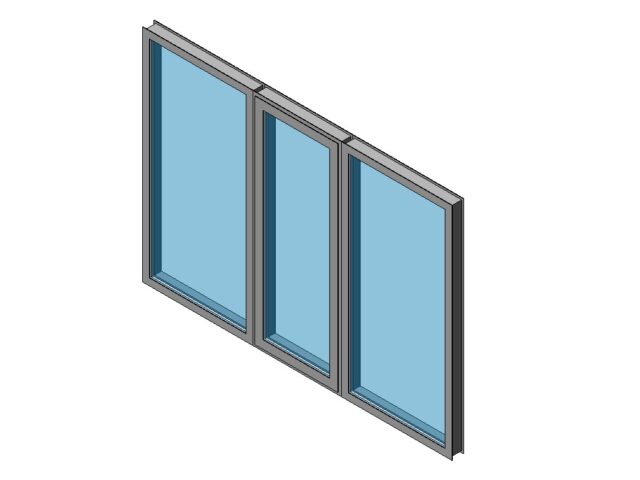

3 Panel Window Central Casement Aluminum Frame
Revit Triple panel window family with casement swing panel and side fixed panels. Parametric.

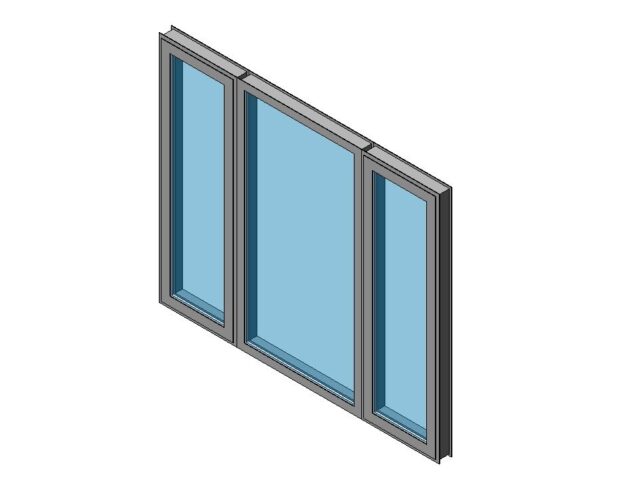

3 Panel Casement Window Aluminum Frame
Revit Triple panel window one fixed and two casement swing panels. Parametric.
Fixed and Operable Casement Window Aluminum Frame
Double-panel casement window, combining a swing panel and a fixed panel. Fully parametric with adjustable dimensions, frame, and material customization. Includes outswing operation, projection swing lines in plan/elevation, and wall integration controls. Perfect for modern aluminum frame designs.
Double Casement Window Aluminum Frame
Revit casement double window with modern aluminum frame, fully parametric dimensions for height, width, frame depth, and thickness. Includes swing line visibility and material assignments.
Casement Window Single Aluminum Frame
Revit Casement Single Window family with clean, modern aluminum frame, slim profile. Fully parametric, height, width, frame depth, and thickness. Plan and elevation swing lines, assignable materials for the frame and glazing.
