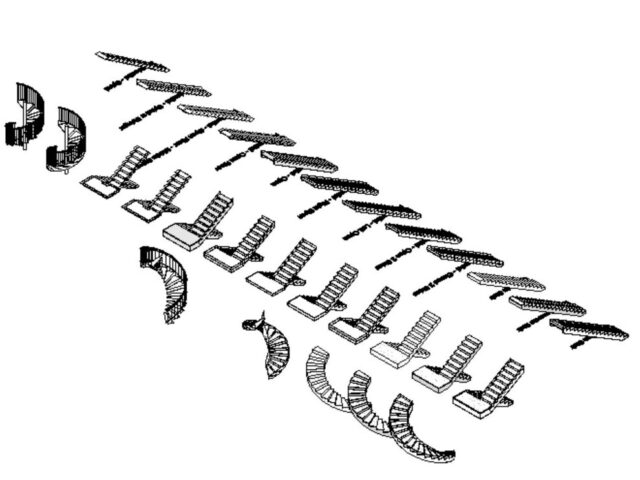

This Revit file contains a collection of stair families and stair assembly samples designed for architectural, commercial, institutional, and residential projects. The library showcases a wide variety of stair configurations, layouts, and detailing options to support design development, BIM coordination, and construction documentation.
- Metal pan stair
- Brick concrete stair
- Concrete stair
- Wood stair closed two sides - residential
- Wood stair open two sides - residential
- Woos stair open left - residential
- Wood stair open right - residential
- Open riser stair
- Open riser middle stringer
- Spiral with stringer
- Spiral residential
Families are developed to be flexible and customizable, allowing users to customize dimensions, materials, railing systems, landing sizes, and other key parameters to suit project-specific requirements.
stair_collection_samples_01_02.rvt
